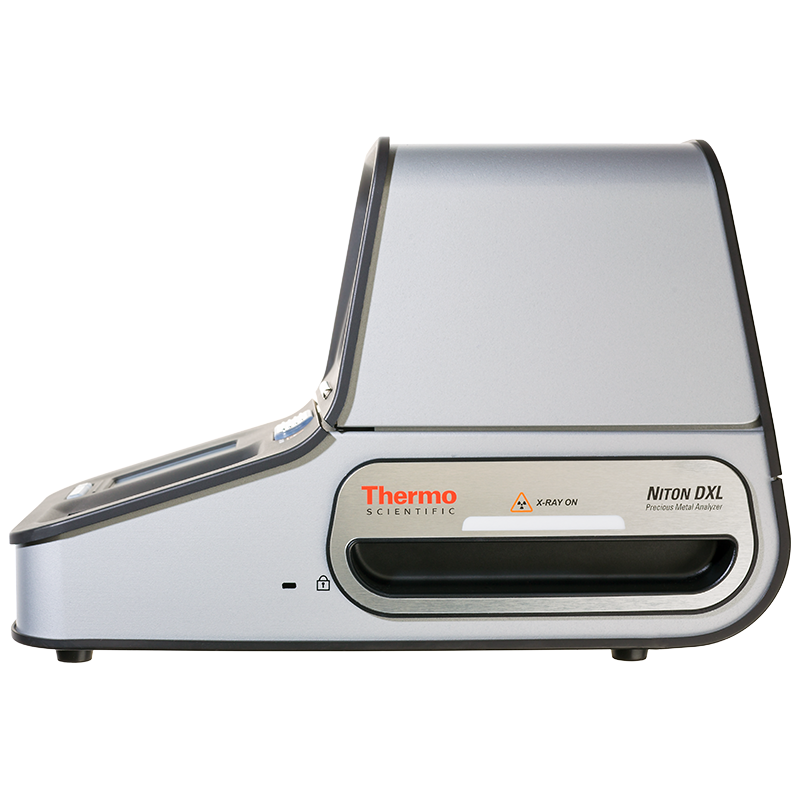

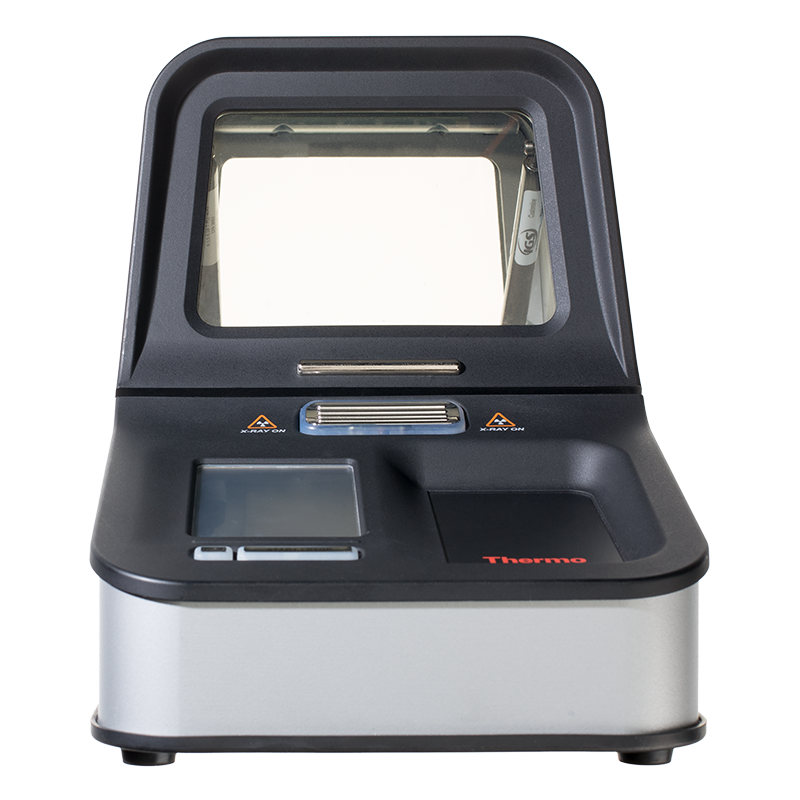

Niton DXL
XRF analyzer for precious metals
- fast, easy to use
- accurate
- non destructive
With the daily changes in precious metal prices, inaccuracies in testing can significantly affect your results. The Niton DXL spectrometer identifies the composition of jewelry and other precious metals (gold, silver, platinum and their alloys) in seconds. It provides accurate & reliable results to determine the value of samples and ensure a fair transaction. It is very easy to use: place the sample, press the button. In a few seconds, the chemical composition is displayed and you can print or send the analysis report.
Advantages
X-ray fluorescence, a non-destructive technology
The Niton DXL X-ray fluorescence technology provides highly reliable and above all non-destructive analysis. In contrast to traditional acid, touchstone or grinding test techniques, this method does not damage the samples and they do not lose their value.
Detecting gold plating with AuDIT™ technology
The Niton DXL spectrometer is able to determine the presence of gold plating on a non-gold substrate. Although limited to the thickness of gold typically used in the jewelry industry to plate items, AuDIT™ technology accurately confirms the presence of the following
Vermeil (gold-plated silver)
Gold-plated copper
Steel
Tungsten
Other non-gold substrates
Applications
Precious metals trading
Purchase and resale of jewels, lingots, numismatics
Specifications
| Technology | XRF |
| X-ray tube | 45 kV, Ag Anode |
| Detector | High performance Si-PIN semi-conductor |
| Dimensions | 396 x 206 x 265 mm |
| Weight | 7.7 kg |
| Dimensions of the analysing box | 172 x 133 x 184 mm |
| Analysis area | 8 mm |
| Power | Lithium-Ion 7.2 V battery |
| Electric consumption | 80 µA |
| Display | Color touchscreen |
| Camera | onboard CCD |
| Security | Protection of users against X-rays |
| Sotftware | NDT Thermo Scientific |
| Data storage | +10 000 résultats avec spectres (128 Mo) |
| Accessories | 7.2V lithium-ion battery pack; 110/220 VAC adapter; USB cable; data transfer software; adhesive for sample stabilization; Mylar windows for replacement |
| Optional accessories | 3 mm small area focus function; additional battery pack; external battery charger; reinforced carrying case with lock |
| Compliance | CE, RoHS |
