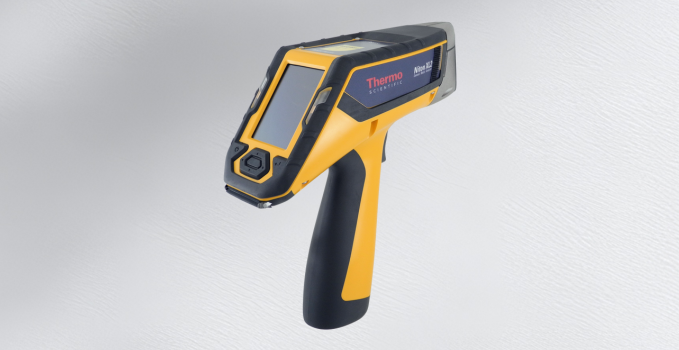

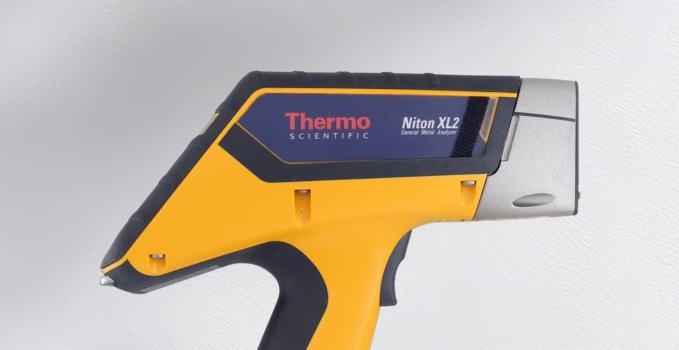

XL2 100G XRF analyzer

Handheld XRF analyzer

  • Fast
  • Rugged
  • Easy to use
Technology used : XRF | Fluorescence X
XL2 100G Brand : Thermo Scientific
Ask for a quote

Designed for professionals in metal recycling or PMI quality control in industry, the XL2 100G Niton analyzer identifies the chemical composition of metals and their alloys in less than 5 seconds. Thanks to the X-ray fluorescence analysis method, XL2 100G performs non-destructive analysis on samples. The results are accurate and directly displayed on the screen. Versatile, it is able to analyze a wide range of elements, from Ti to Bi. Portable and ultra resistant, it has been designed to resist water and dust splashes and can be easily transported to perform measurements in the workshop on the scrap yard. Niton XL2 100G, an easy-to-use analyzer with an excellent price/performance ratio.



Analyze metals and their alloys instantly

The Niton XL2 100 G spectrometer is the perfect solution for sorting metal scrap such as sheet metal, metal chips, cables and wires. Take it directly to the scrap yard to easily perform reliable, fast and non-destructive analysis.

Reliable PMI testings

Niton XL2 100G can also be used to perform Positive Material Identification (PMI) testing in industry. With the non-invasive analysis method, you can test the entire production chain, from incoming goods inspection to finished product inspection.



Metal and alloy sorting




XL2 100G XRF analyzer
Technology XRF
X-ray tube Anode Ag 38 kV, 80 µA
Detector Si-pin
Range of analyzed elements Ti to Bi
Display Fixed color touchscreen
Available modes Alloys
Power Lithium-ion battery (6-8h autonomy)
Data storage Up to 10.000 measurements with spectra
Data transfert USB, Bluetooth, RS-232
Security User password
Dimensions 256 x 275 x 100 mm
Weight 1,6 kg (battery included)
Standard accessories Reinforced carrying case with lock Reinforced belt support 6-cell lithium-ion battery pack 110/220 VAC battery charger/AC adapter PC connection cables (USB and RS-232) PC software Niton Data Transfer (NDT) Safety strap Samples/control standards
Optional accessories Portable test stand, stationary (benchtop) test stand, Thermo Scientific™ mobile test stand.
Compliance/certification CE, RoHS
