Niton XL3t GOLDD+ | XRF analyzer

Handheld XRF spectrometer for metal analysis

  • Easy to use
  • Versatile
  • Analysis of light elements
Technology used : XRF | Fluorescence X
XL3t GOLDD+ Brand : Thermo Scientific
Ask for a quote

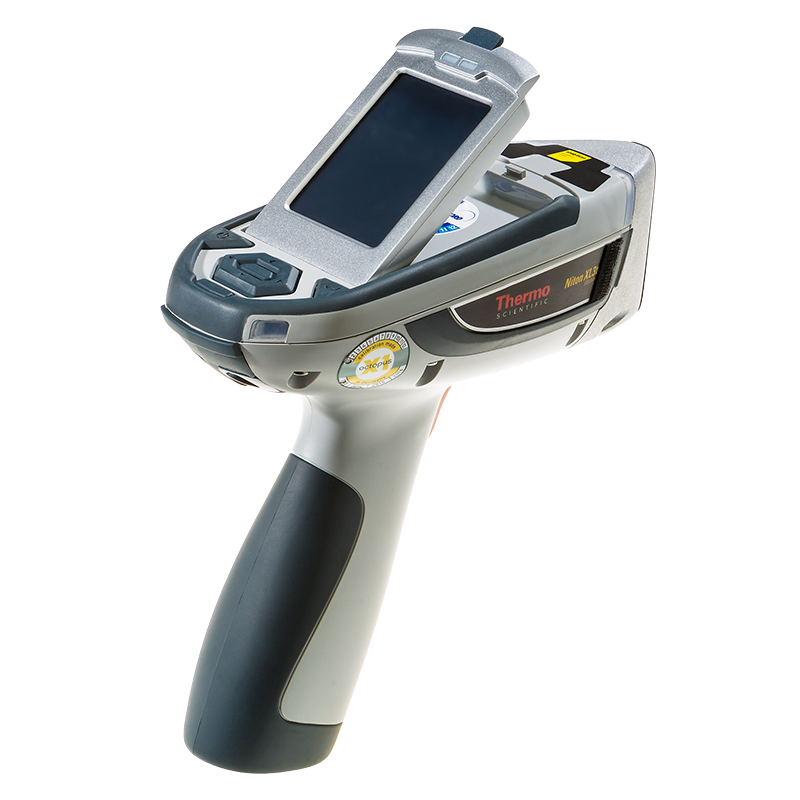

The Niton XL3t is a portable X-ray fluorescence spectrometer. It is used in many industries that require fast, accurate, non-destructive elemental analysis right on site. Fast, lightweight and rugged, it combines advanced technologies and features for greater versatility in the portable XRF market. XL3t can analyze up to 29 elements from Magnesium (Mg) to Uranium (U) as well as the light elements Al, Mg, Si, P and S. With its GOLDD+ SSD detector, industries’ analysis capabilities are taken to a whole new level. Designed for ease of use, the Niton XL3t analyzer features a tiltable touch screen with customizable menus.

Advantages

Fast elementary analysis anywhere

The Niton XL3t portable XRF analyzer meets the needs of many industries requiring rapid, accurate, non-destructive elemental analysis. It provides accurate results on the chemical composition of elements and is battery operated for on-site inspections.

Analysis of light elements

With the GOLDD+ SSD detector, analysis results can be up to 10 times faster than analyzers with a Si-PIN detector
analyzers equipped with a Si-PIN detector and up to 3 times more accurate than instruments equipped with a conventional SDD detector. Lower detection limits for greater versatility.

Versatile to meet a variety of analytical challenges

The performance of Niton XL3t solves analytical problems in many areas. It is particularly relevant in the following applications:

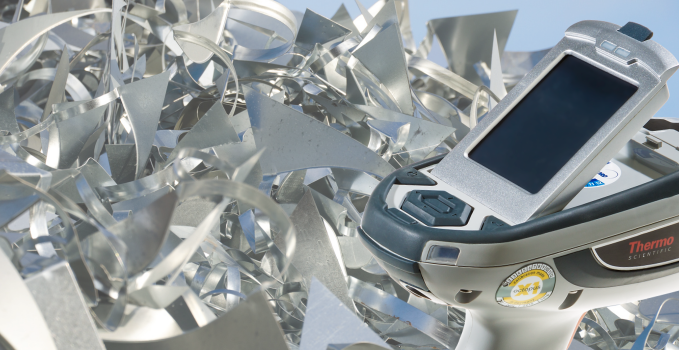

  • identification of metals & alloys in scrap metal
  • analysis of catalytic converters
  • thickness measurement of surface treatments
  • analysis and mapping of polluted soils
  • analysis of ores
  • archaeometric analysis
  • plastics control and D3E sorting
  • RoHS

Applications

Recycling

Metals and alloys identification, catalytic converters, plastics, D3E

Coating

Thickness measurement and composition of surface treatments

Environment

Analysis of polluted soils, analysis of ores

Archeometry

Analysis of materials, pigments, glasses, ceramics

Specifications

Niton XL3t GOLDD+ | XRF analyzer
Tube Anode Ag 50 kV et 200 µA, 6 to 50 kV
Detector GOLDD (geometrically optimized wide area drift detector)
Analytical range Up to 30 elements from Mg to U (varies by application)
Dimensions 244 x 230 x 95,5 mm
Weight 1,3 kg
Available measurement modes Alloy, bulk, plastic, custom
Power Lithium-ion battery packs
Data capacity Mémoire système interne de 32 Mo/espace de stockage utilisateur interne de 128 Mo
Data storage Internal >10,000 readings with spectra
Data transfert USB, Bluetooth, and RS-232 serial communication
Display Tilting, color, touch-screen display
Electric consumption 0 à 200 µA
Camera Integrated CCD camera for locating and storing images
Security Password-protected user security
Software NDT Niton Data Transfer
Standard accessories Locking shielded carrying caser Shielded belt holster Two lithium-ion battery packs 110/220 VAC battery charger/AC adaptor PC connection cables (USB and RS-232) Niton Data Transfer (NDT) PC software Safety lanyard Check samples/standards
Optional accessories 3 mm small-spot collimation Thermo Scientific SmartStand™ portable test stand, stationary (bench-top) test stand, mobile test stand, Field Mate™ Thermo Scientific Extend-a-Pole™ extension pole Soil testing guard
Compliance CE, RoHS
