XL2 Plus – XRF Spectrometer

Metal handheld XRF spectrometer

Réf : XL2 plusBrand : Thermo Scientific
  • Robust (Proguard Protection Detector)
  • High performance (even on light elements)
  • Ergonomic (hot swappable batteries)
Technology used : Fluorescence X (XRF)

Niton XL2 Plus sorts pure aluminum from aluminum alloys

The Niton XL2 Plus is the new handhelde XRF (X-Ray Fluorescence) spectrometer for analyzing metals. This portable analyzer can identify pure metals and alloys or detect impurities.

Within seconds, the chemical composition of the sample and material identification are displayed on the spectrometer screen. The XL2 Plus has a library that includes most industrial alloys. And the library is customizable.

The Niton XL2 Plus offers 9 possible calibration modes: metals, precious metals, coatings, soils, ores, lead in paints for industrial plants, lead in paints for products, electronics, plastics.

Better protected analyzer

La vue avant de l'analyseur montre un museau fin

The XL2 Plus analyzer is equipped with a PROGUARD Protection detector. This limits the risk of perforation.

Handheld XRF analyzer designed for the field

  • The XL2 Plus is resistant to rain and dust, it is IP54.
  • Its batteries are hot-swappable to save time.
  • Its interface is intuitive and its screen is touch-sensitive, even when wearing gloves,
  • Its autonomy is 8 hours.

Applications of Niton XL2 Plus

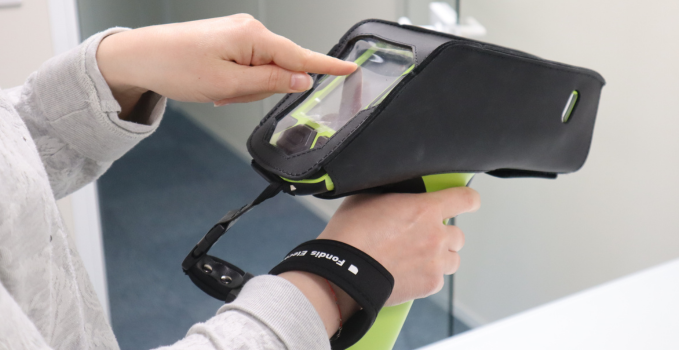

Des mains avec des gants touchent l'écran tactile de l'analyseur
There is a touchscreen even when wearing gloves

Recycling of scrap metal

With the XRF Niton XL2 Plus XRF spectrometer, metal sorting is simplified. Scrap metal is sorted efficiently.

Quality control in manufacturing

Checking metals, alloys on site and in real time allows to avoid mixing materials. Niton XL2 Plus identifies alloys before or during production or in quality control at the end of production.

Analyzed materials

  • Aluminum alloys
  • Stainless steels, chromium steels
  • Low-alloy steels
  • Nickel, cobalt base alloys
  • Copper, brass, bronze alloys
  • etc.

Characteristics of the XRF spectrometer

  • Weight: 1.65 kg with batteries
  • Dimensions: 25.6 x 27.5 x 10 cm
  • X-tube: 2W, Ag anode, 6-45 kV, 1-200 uA max.
  • SDD Proguard Protection Sensor
  • Range of analysis: from Magnesium (Mg) to Uranium (U)
  • IP 54
  • Li-ion battery, hot-swappable (7.4V, 7.8Ah, 57.7Wh)
  • Customizable library
  • Built-in micro CCD camera
  • Data transfer via Bluetooth, USB, RS-232
  • Storage of 10,000 measurements
  • Password protection
  • Temperature : from -10°C to 50°C
  • External GPS (optional)

The portable spectrometer is supplied with its accessories :

  • Rechargeable Li-ion battery
  • Standard
  • Software NDT
  • PC connection cables
  • Suitcase
  • Battery charger
  • Lanyard
  • Belt case
  • The after-sales service is carried out in our premises
  • Our technicians are authorized to carry out the after-sales service in our premises as soon as possible.
  • They provide installation services, instrument qualification and user training.
  • Other services: loan of equipment; extended warranty; long-term rental; possible trade-in of your old analyzer.
