NITON XL5 Plus | Handheld XRF analyzer

Handheld XRF spectrometer for elemental analysis

  • compact & lightweight
  • user oriented
  • light elements
Technology used : XRF | Fluorescence X
XL5 Brand : Thermo Scientific
Ask for a quote

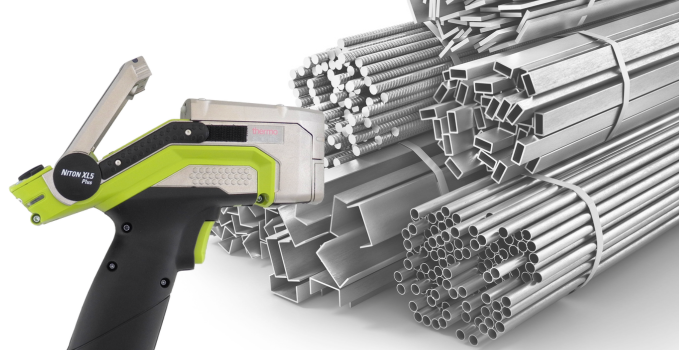

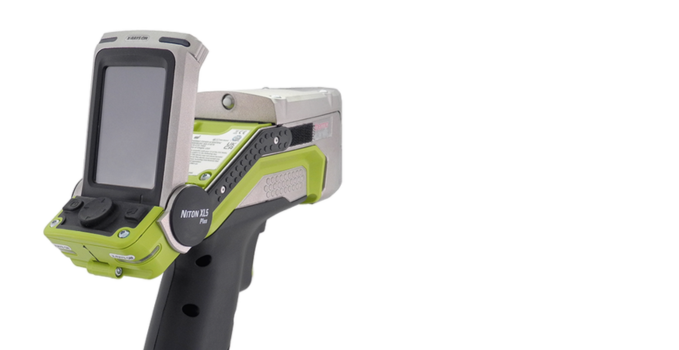

The Niton XL5 Plus™ analyzer is the latest portable XRF spectrometer from Thermo Scientific. Small, powerful and ultra-lightweight, it provides accurate elemental analysis in seconds directly in the field for a variety of applications. With XRF technology, versatility and low detection limits, XL5 Plus meets the most demanding analytical challenges with accurate results that are equal to laboratory quality.


Analytical performance and versatility

The XL5 Plus portable spectrometer has low detection limits that allow analysis of a wide range of chemical elements with fast and accurate laboratory quality results. It is also capable of analyzing the light elements Mg, Al, Si, P, S! It is a versatile analyzer including 6 calibration modes: metals, precious metals, coating, spectral fingerprinting, ores, soils, to solve analytical challenges in many sectors.

Ergonomic and compact design

Designed specifically for basic field analysis, the XL5 Plus is now the lightest portable XRF spectrometer on the market at only 1.3 kg! A tilting color touch screen and navigation buttons to be used even with work gloves! A very easy to use interface, a protected detector for more robustness, hot swappable batteries! For maximum convenience and comfort.



Positive Material Identification


Verification of metals and alloys


Metals and alloys sorting


Analysis of surface treatments (thickness and composition)


Analysis of polluted soils


Geochemical exploration


Analysis of hazardous substances in consumer's goods

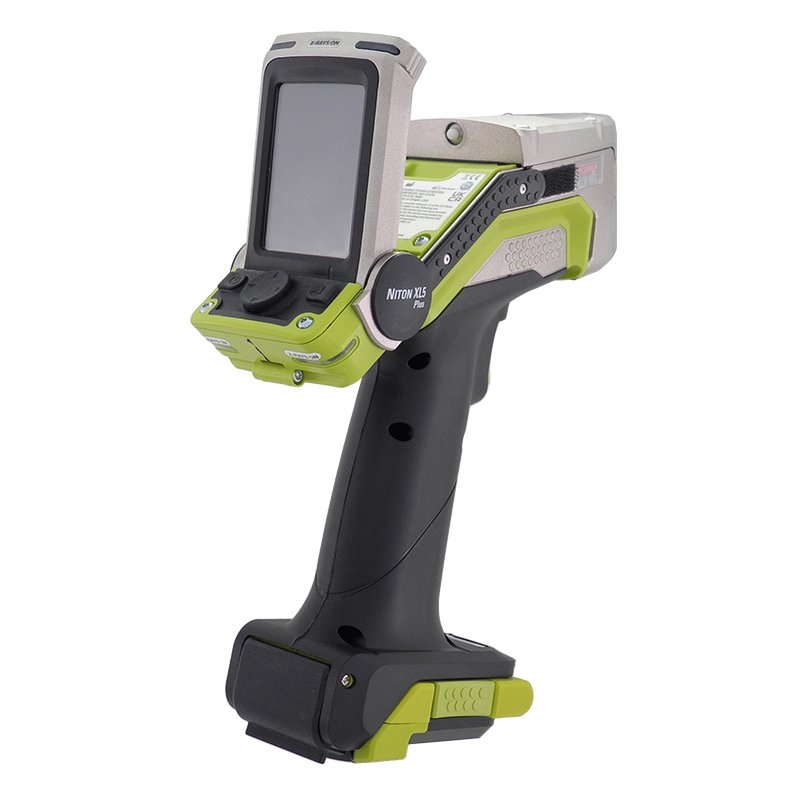

NITON XL5 Plus | Handheld XRF analyzer
Technology XRF
X-Ray tube Ag anode (6-50kV, 0-500uA, 5W max)
Detector SSD (1μm graphene window). Detector ProGuard protection included.
Dimensions 242 x 208 x 68 mm
Weight 1.3 kg (battery included)
Power 12V lithium-ion battery, or 12V DC, 3A, 3.6W (hotswappable)
Display Tilting, color, resistive touchscreen display
Connexion WiFi, USB-C
Library Default alloy libraries based on SAE, AISI, ASTM, AA, DIN, GB standards. Users may create, clone and edit libraries.
Data storage Approximately 130,000 readings with spectra
Security Password-protected user security
Accessories Locking shielded carrying case, 2 lithium-ion battery packs, 1 110/220 VAC battery charger/AC adaptor, check samples, safety lanyard, USB connection cable
Accessories (optionnal) Portable test stand, mini test stand, backscatter shield, hotwork stand off, soil guard, belt holster, bluetooth printer
Operating environnement Temperature: 0°C to 50°C, Humidity: 10% to 90% relative humidity non-condensing
Software NitonConnect PC
OS Linux
Complicance CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1:2010
